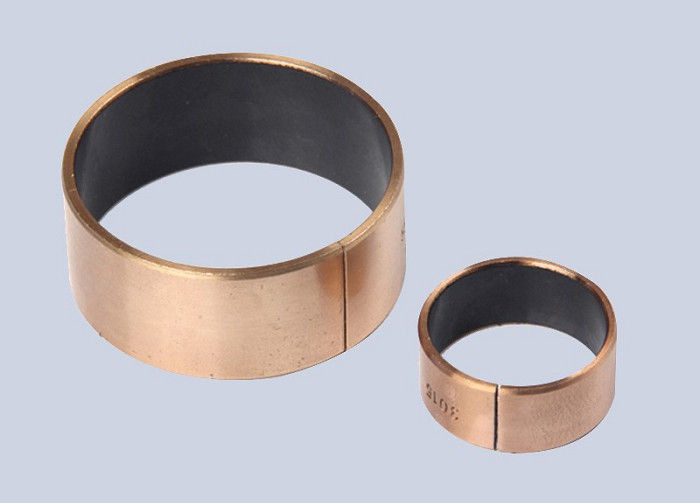

Low Noise Oil Impregnated Bronze Bushings Self Lubricating Bush Material

Low Noise Oil Impregnated Bronze Bushings Self Lubricating Bush Material

    • Low Noise Oil Impregnated Bronze Bushings Self Lubricating Bush Material
  • Low Noise Oil Impregnated Bronze Bushings Self Lubricating Bush Material

    Product Details:

    Place of Origin: China
    Brand Name: CCVK
    Certification: ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 Piece/Pieces
    Price: negotiable
    Packaging Details: Export carton; Wooden case ; Wood pallet.
    Delivery Time: 2~4 Weeks
    Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal,etc.
    Supply Ability: 1000000 Piece/Pieces per Month Bearing Bush
    Contact Now
    Detailed Product Description
    Features:: Oilless, Low Noise Wear Resistance:: Excellent
    Applications:: Metallurgy Extensively, Automobile, Mine, Petroleum, Etc Material:: Customised
    Samples:: Free OEM:: Yes
    High Light:

    graphite impregnated bronze bushings

    ,

    bronze sleeve bearings

    Low Noise Oil Impregnated Bronze Bushings Self Lubricating Bush Material



    lt's made of bronze or iron powder. mold pressed in high pressure. sintered in high temperature and soaked in oil by vacuum. lt's used in domestic electric appliances, electric tools, textiles machinery, chemical machinery and automobile industry, etc.



    Specifications:



    mechannical performance Load capacity Static load 150N/mm2
    Max.Working temperature Grease Lubrication 150℃
    Oil Lubrication 250℃
    PV value limit Oil lubrication 10N/mm2.m/s
    Dry lubrication 2.8N/mm2.m/s
    Linear Velocity Dry Friction 0.4m/s
    Grease Lubrication 2.5m/s
    Mating Axis Hardness ≥53 HRC
    Roughness Ra-0.32~0.63
    Anti-tensile Strength 185 N/mm2
    Alloy Hardness HB 60~90
    Friction coefficient 0.05~0.22
    Themal conductivity 47W/mk
    Heat-expansion Coefficient 18x10(-6)/k




    Description:



    Sleeve Bearings:

    Model No. Min. I.D. Min.O.D. Max.I.D. Max.O.D. Max. Length
    DU,SF-1 6mm 8mm 300mm 305mm 100mm
    DX,SF-2 10mm 12mm 300mm 305mm 100mm
    JF800 10mm 12mm 173mm 180mm 100mm
    FB090 10mm 12mm 300mm 305mm 100mm
    FB092 10mm 12mm 300mm 305mm 100mm
    JDB,JCB 8mm 12mm 160mm 180mm 150mm
    FU 1.5mm 3mm 50mm 70mm 70mm
    JGB 1.5mm 3mm 300mm 320mm 100mm



    Flange Bearings:

    Model No. Min. I.D. Min.O.D. Max.I.D. Max.O.D. Min.F.D. Max.F.D. Max. Length
    DU,SF-1 6mm 8mm 40mm 44mm 12mm 53mm 40mm
    JF-800 40mm 46mm 95mm 105mm 60mm 144mm 127mm
    FB090 25mm 28mm 300mm 305mm 35mm 340mm 90mm
    FB092 25mm 28mm 300mm 305mm 35mm 340mm 90mm
    JDB 10mm 14mm 120mm 140mm 22mm 170mm 100mm
    FU 6mm 12mm 50mm 60mm 14mm 70mm 70mm
    JGB 6mm 12mm 300mm 320mm 35mm 340mm 130mm




    Appliaction :

    1. PTFE and Polymer fibers created the lubricated film and it is transfered to the mating shaft to improve running properties,also protect the mating Surface of shaft;
    2. Perfect wear resistant ,lower friction,suitable for the working conditions of with or without lubricating oil,and keep the lubricating oil clear after long period of working;
    3.Particularly suitable for bushes in reciprocating motions,also for other motions;
    4.Used in Automotive suspension structs,shock absorbers,Hydraulic; cylinders,gear pumps,motors,axial and radial pistion pumps & motors.







    Advantages



    ※ Top quality with cheap price

    ※ Strict dimensions control and high precision

    ※ All are eco-friendly

    ※ Quick delivery

    ※ Perfect sales-after service
