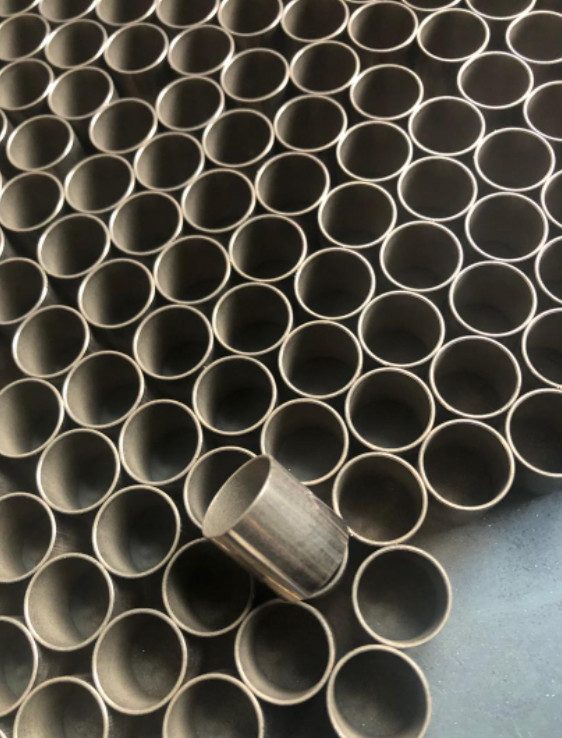

Oilless CuSn6-6-3 Self Lubricating Bronze Bearings Low Friction

  • Oilless CuSn6-6-3 Self Lubricating Bronze Bearings Low Friction
  • Oilless CuSn6-6-3 Self Lubricating Bronze Bearings Low Friction
Place of Origin China
Brand Name CCVK
Certification ISO9001
Model Number JDB
Minimum Order Quantity 50 piece
Price USD 2-100 per piece
Packaging Details plywood box,paper box
Delivery Time 2 weeks
Payment Terms L/C, T/T, D/P, MoneyGram, Western Union
Supply Ability 1000 pieces per day
Product Details
Type Self Lubricating Adavantage Low Friction
Material CuSn6-6-3 Lubricating Oilless
Life Long Cost Low
High Light

Oilless Self Lubricating Bronze Bearings

,

Self Lubricating Bronze Bearings Low Friction
Leave a Message
Product Description

Oilless CuSn6-6-3 Self Lubricating Bronze Bearings Low Friction



Sintered Bronze Flange Bushing Bearing

Bronze sleeve bushings or bronze bearings are hard and strong, as opposed to brass bushings, which are softer and more easily deform. Thus, bronze bushings have longer lifespans than brass bushing sleeves. They resist shock and impact, wear and corrosion.They require an external lubricant, for example grease or oil, at installation and during operation to reduce friction and wear.



Bunting cast bronze lead-free bearings are machined from continuous cast CuSn6-6-3 CCVK for superior quality and performance. The continuous casting process assures a uniform bronze structure throughout the bearing, free from porosity and hard particle inclusions commonly found in other cast processes. Our Bronze bearings have been independently tested and proven to be superior to other cast lead free materials.



Base material: CuSn6Zn6Pb3orCuSn10

Load capacity: 35N/mm2

Friction Coef.μ: 0.12~0.18

Temperature limit: -80~160℃



solid bronze bushing specification:

Material CuZn25Al5 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn32Al5Ni3
Density 8 8.9 7.8 8.9 8
HB hardness >210 >70 >150 >95 >280
Tensile strength N/mm2 >750 >200 >600 >260 >540
Yeild strength N/mm2 >450 >90 >260 >150 >450
Elongation % >12 >15 >10 >8 >0.3
Coefficient of linear expansion 1.9x10-5/°C 1.8x10-5/°C 1.8x10-5/°C 1.8x10-5/°C 1.8x10-5/°C
Max. temp. -40~+300 -40~+400 -40~+400 -40~+400 -40~+150
Max. load N/mm2 100 60 50 70 150
Max. speed (Dry) m/min 15 10 20 10 15
Max. PV N/mm2*m/min (Lubrication) 200 60 60 80 200
Compression deformation
300N/mm2		 <0.01mm <0.05mm <0.04mm <0.05mm <0.005mm





Performance index Data
Max Load Capacity P 45N/mm2
Working TEMP -60℃~+160℃
Max. Sliding Speed V 2.5m/s
Material CuSn6-6-3
Maximum PV Value 2.45N/mm2·m/s
