Abrasion Proof Lifter CuSn8P0.3 Thrust 2.5m/S Wrapped Bronze Bearings

Place of Origin: China
Brand Name: CCVK
Certification: ISO9001
Model Number: FB092
Minimum Order Quantity: 50 Piece/Pieces
Price: negotiable
Packaging Details: Export carton; Wooden case ; Wood pallet.
Delivery Time: 2~4 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal,etc.
Supply Ability: 1000000 Piece/Pieces per Month Bearing Bush
Product Details
Product Name: Lifter Wrapped Bronze Bearings Max Sliding Speed: 2.5m/s
Material: CuSn8P0.3 / CuSn6.5P0. 1 Hardness: HB90~120
Lubricating Way: Maintenance-Free Bearing Bearing Direction: Thrust
Temperature Limit: -100℃~200℃ Application: Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Processing Machinery Parts, Metal Forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
High Light:

Thrust Wrapped Bronze Bearings

,

CuSn8P0.3 bronze bush bearings

,

2.5m/s Wrapped Bronze Bearings

Leave a Message
Product Description

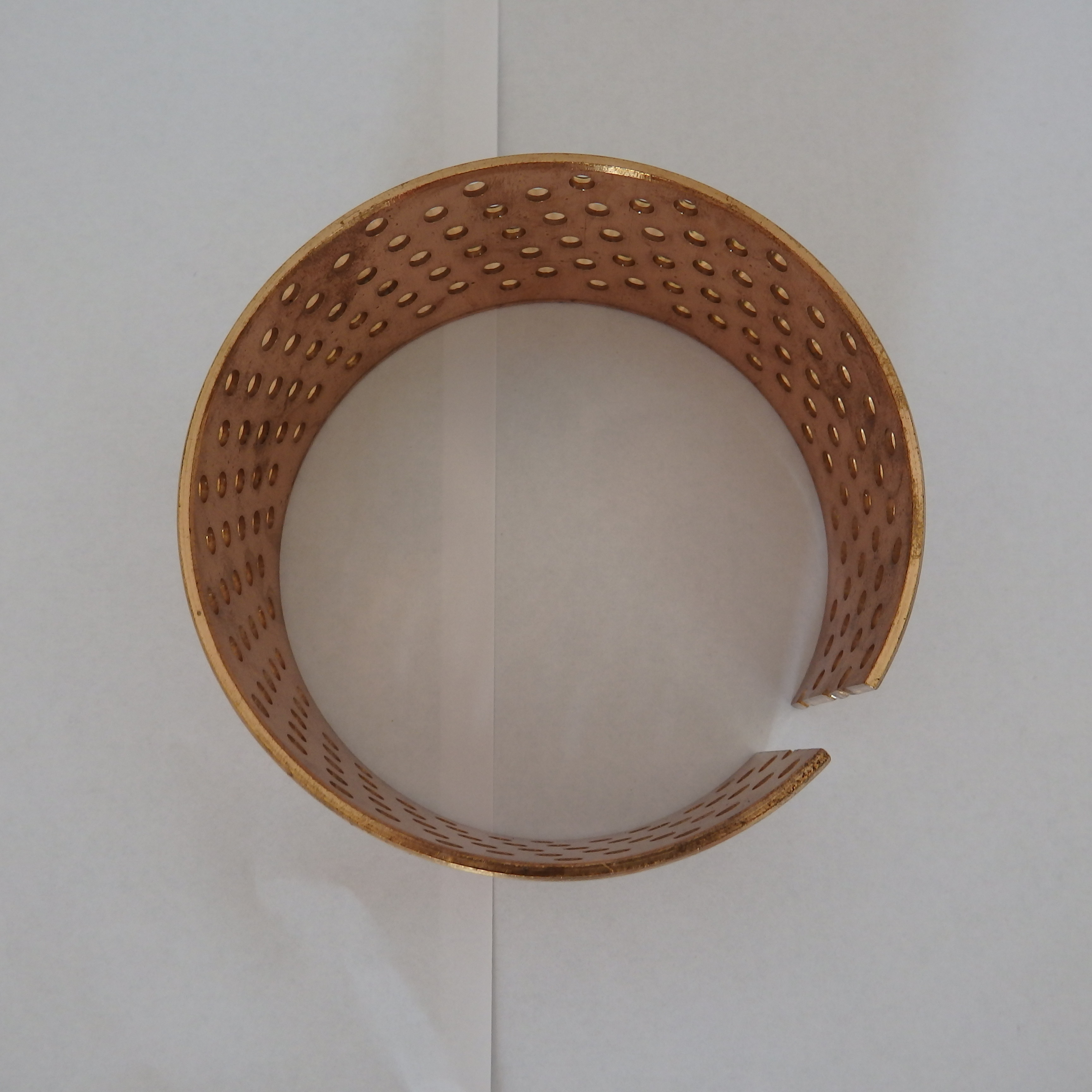

Low friction coefficient Abrasion Proof lifter Wrapped Bronze Bearings



CuSn8 bronze is a kind of economical thin wall copper based rolling bearing with high bearing capacity and high wear resistance.According to different lubrication conditions, we can provide two types of rhomboid oil holes and oil holes. Rhomboid oil holes are used for grease lubrication and through holes for fluid lubrication. Such a design can ensure that the lubricating film can be established at the beginning of the bearing operation, so as to reduce the initial friction coefficient.



Material:CuSn8P0.3 / CuSn6.5P0. 1

Hardness:HB90~120

Temperature limit:-100℃~200℃

Load capacity:60N/mm2

Speed limit:2.5m/s







Performance index Data
Max Load Capacity Static load 110N/mm2
Dynamic load 30N/mm2
Max Sliding Speed 2.5m/s
Max PV Value Limit 2.8N/mm2·m/s
Friction coefficient(μ) 0.08~0.25
Working TEMP -100℃~+200℃
Thermal conductivity 60W/m·K
Coefficient of thermal expansion 15×10-6/K



application :

Farm machinery construction machinery crane truck chassis parts conveyor elevator winch leveling machine, etc



About Us








Jiashan Gangping Machinery Co., Ltd. is located in the front line at Yangtze River Delta Economic Circle. This company is almost zero-distance to Shanghai and it’s only 90 km away from both Hangzhou and Suzhou. With such a strategic location, the transportation around the company is very convenient.

As a manufacturing base for sliding bearing industry, our factory’s key focuses are the excellent product quality, optimized manufacturing costs and good after-sales service. Our factory has also been committed to the application and promotion of innovated products, new materials and high-tech researches. We are continuously enhancing the level and image of the enterprise. By the fully integration of the group’s advantages, we are able to provide high-quality, low-cost, and good services to meet the needs of foreign customers.

The product portfolio of our factory covers five categories, 20 series and thousands of specifications. The production processes are well controlled and precise quantified for every details. The production is also strictly implemented under the ISO9001 quality assurance system.





FAQ



1.Can you give me discount?

Yes,of course.We will quote you lowest price at the beginning.



2.Will you send me free samples?

Yes.We can make some samples to you, please contact us for details.



3.How to get an accurate quotation?

A: If you are interested in our products, please provide us with below information:



♦ Drawings, photos or samples of products.



♦ Detailed sizes of products.



♦ Material of products.



♦ Surface treatment of products.



♦ Ordinary purchasing quantity.





4. What about the delivery time?

Normally the delivery time is about 20 Days, according to the quantity.
