Stainless Steel DU Backing PTFE DU Dry Bearing For Chemical Industry
Product Details
| Load Capacity | 140N/mm2 | Material | Bronze/Steel/Graphite/Bi-metal |
|---|---|---|---|
| Type Of Lubricant | Solid-Lubricated Bearing | Speed Limit | 5m/s |
| Application | Gear Pump, Ram Pump, Vane Pumps | Working Temperature | -195℃~+280℃ |
| High Light | bronze sleeve bushings,graphite sleeve bearings |
||
Product Description

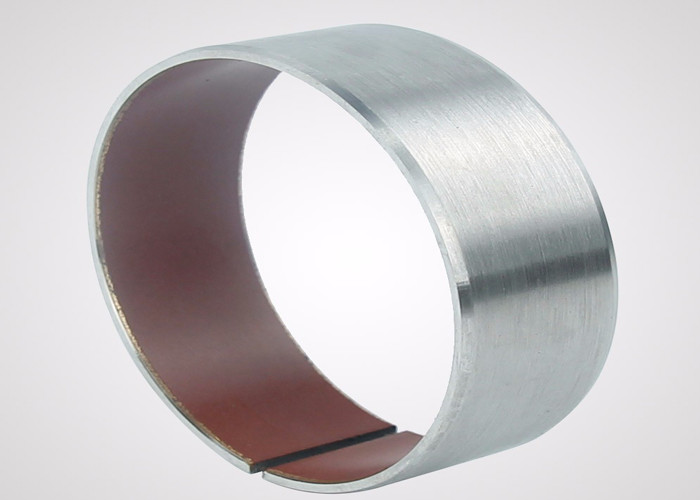

Stainless steel DU backing PTFE oiless bearing bush SF-1SS Self lubricating dry bushing
SF-1SS bushing is based on stainless steel back and spay-painted PTFE on the surface.It has good performance of anti-acid,anti-alkali,anti-salty liquid and can be widely used in chemical industry such as acid/alkali flow indicator,pumps,valves etc and also in the sliding position where anti-corrosion is a necessity mostly in marine industry
Load capacity:100N/mm2
Temperature:-190°C ~+280°C
Speed limit:2.5m/s
Friction coef(μ):0.03~0.18 PV
limit(dry):3.0N/mm2 .m/s PV
limit(oil):40N/mm2 .m/s
| Performance index | Data | |
| Max Load Capacity | 100N/mm2 | |
| Max Sliding Speed | Dry friction | 2.0m/s |
| Oil lubrication | 5.0m/s | |
| Max PV Value Limit | Dry friction | 3N/mm2·m/s |
| Oil lubrication | 40N/mm2·m/s | |
| Friction coefficient | Dry friction | 0.08~0.08 |
| Oil lubrication | 0.02~0.07 | |
| Working temperature | -195℃~+280℃ | |
| Thermal conductivity | 42W/m·K | |
| Coefficient of thermal expansion | 15×10-6/K | |
Jiashan Gangping Machinery Co., Ltd. is located in the front line at Yangtze River Delta Economic Circle. This company is almost zero-distance to Shanghai and it’s only 90 km away from both Hangzhou and Suzhou. With such a strategic location, the transportation around the company is very convenient.
As a manufacturing base for sliding bearing industry, our factory’s key focuses are the excellent product quality, optimized manufacturing costs and good after-sales service. Our factory has also been committed to the application and promotion of innovated products, new materials and high-tech researches. We are continuously enhancing the level and image of the enterprise. By the fully integration of the group’s advantages, we are able to provide high-quality, low-cost, and good services to meet the needs of foreign customers.
The product portfolio of our factory covers five categories, 20 series and thousands of specifications. The production processes are well controlled and precise quantified for every details. The production is also strictly implemented under the ISO9001 quality assurance system.
FAQ
1.Can you give me discount?
Yes,of course.We will quote you lowest price at the beginning.
2.Will you send me free samples?
Yes.We can make some samples to you, please contact us for details.
3.How to get an accurate quotation?
A: If you are interested in our products, please provide us with below information:
♦ Drawings, photos or samples of products.
♦ Detailed sizes of products.
♦ Material of products.
♦ Surface treatment of products.
♦ Ordinary purchasing quantity.
4. What about the delivery time?
Normally the delivery time is about 20 Days, according to the quantity.
