PVDF modified polymer Copper powder PTFE steel bearings

Place of Origin China
Brand Name CCVK
Certification ISO9001
Model Number SF-1S
Price negotiable
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Supply Ability 1000000 Piece/Pieces per Month Bearing Bush
Product Details
Lubricating Self Lubricating Surface Treatment Copper Plating Or Tin Plating
Type Of Lubricant Solid-Lubricated Bearing Customized Based On Drawing Or Samples
Application Gear Pump, Ram Pump, Vane Pumps Type Sliding, Sleeve,Flange,thrust Washer,slide Plate,Customized
Material Structure Stainless Steel+copper Powder+(PTFE+Pb) Mixture Product Name Self-lubricating Composite Sliding Material With Stainless Steel Backing
High Light

pom bush


oil impregnated brass sleeve bearing

Leave a Message
Product Description

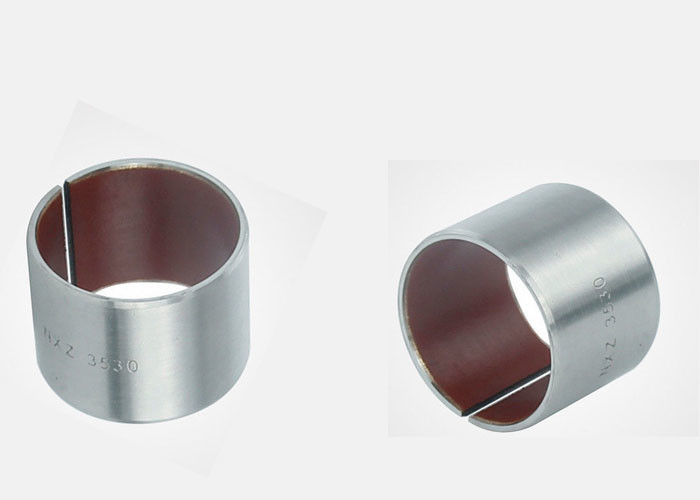

PVDF modified polymer Copper powder PTFE steel bearings


Material organization:

1.PVDF modified polymer 0.20~0.35mm, provides basic bearing performance, even in the case of a small amount of lubrication also has good wear resistance and low friction factor.

2. Copper powder layer 0.20~0.35mm, with good bearing capacity and wear resistance, good thermal conductivity can timely transfer the heat generated in the process of bearing operation. The composite material can penetrate into the pores of the copper powder ball and improve the bonding strength.

3. Mild steel, providing bearing capacity and heat transfer.


Application characteristics:
The working layer of standard material is designed with oil holes. It is suggested that oil feeding in the early stage of grease lubrication can greatly extend the service life of the product. It is suitable for boundary lubrication or continuous oil feeding conditions. Zxb-22m resin layer thickness 0.1-0.2mm surface without oil hole, after installation can be processed to improve the accuracy of the inner hole.



Typical applications:
Recommended for early oil or grease lubrication conditions, this material has excellent wear resistance, can meet medium and high load, impact, dust resistance, high temperature and other working conditions; Such as truck or commercial vehicle axle, brake, air compressor, suspension system, hydraulic components such as plunger pump, hydraulic motor, rotary motor, as well as agricultural machinery, forest machinery, logistics equipment and other general industrial sliding bearings.


Technical parameters
Maximum load Static load   250N/mm²   The use of temperature
Low speed   140N/mm²   Speed Limit prelubricated   2m/s
Rotation.Swaying motion   70N/mm²   Oil/grease continuous lubrication   >3m/s
Maximum PV value 3.6N/mm²*m/s   Friction coef 0.03-0.20
Note:Bearings must be pre-lubricated before installation



About Us




Jiashan Gangping Machinery Co., Ltd. is located in the front line at Yangtze River Delta Economic Circle. This company is almost zero-distance to Shanghai and it’s only 90 km away from both Hangzhou and Suzhou. With such a strategic location, the transportation around the company is very convenient.

As a manufacturing base for sliding bearing industry, our factory’s key focuses are the excellent product quality, optimized manufacturing costs and good after-sales service. Our factory has also been committed to the application and promotion of innovated products, new materials and high-tech researches. We are continuously enhancing the level and image of the enterprise. By the fully integration of the group’s advantages, we are able to provide high-quality, low-cost, and good services to meet the needs of foreign customers.

The product portfolio of our factory covers five categories, 20 series and thousands of specifications. The production processes are well controlled and precise quantified for every details. The production is also strictly implemented under the ISO9001 quality assurance system.




1.Q: Can you give me discount?

A: Yes,of course.We will quote you lowest price at the beginning.


2.Q: Are you a factory or a trading company?
A: We are a professional factory and exporter with more than ten years of experience. We have
a professional production team, technical team, quality control team and sales team.

3. Q: What is your main product?
A: Cast brass bushings, cast bronze bushings, oilless bearings, wear plates, DU bushes, DX bushes, bimetal bearings.

4. Q: What is your delivery time?
A: Usually, the delivery time for customized products is 20 days after receiving your deposit.

The lead time for stock products is about 3 days. (It ultimately depends on the product and quantity of the order).

5. Q: What is your minimum order quantity?
A: The MOQ for different types of bushings is different, please contact us for confirmation.

6. Q: How to obtain samples and electronic sample books?
A: The small samples in stock can be given away for free, you only need to pay the freight. The electronic sample book

can be sent to your mailbox.

7. Q: What is your advantage?
A:(1) Stable and high quality
(2) Competitive price
(3) Fast response and delivery
(4) Support customized and personalized services

8.Q: How to get an accurate quotation?

A: If you are interested in our products, please provide us with below information:

♦ Drawings, photos or samples of products.


♦ Detailed sizes of products.


♦ Material of products.


♦ Surface treatment of products.


♦ Ordinary purchasing quantity.


9.Q: What about the delivery time?

A: Normally the delivery time is about 20 Days, according to the quantity.


If you have any questions, please feel free to contact us!
