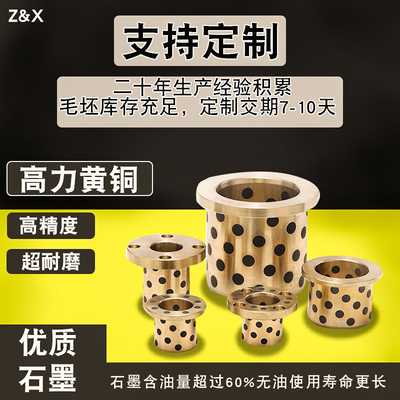

JFB Solid Lubricants Inlaid graphite self-lubricating Bearing Flange Sleeve Bearing Cast Brass Bushings
|Place of Origin||China|
|Minimum Order Quantity||50 Piece/Pieces|
|Packaging Details||Export carton; Wooden case ; Wood pallet.|
|Delivery Time||2~4 Weeks|
|Payment Terms||T/T, L/C, Western Union, MoneyGram,Paypal,etc.|
|Supply Ability||1000000 Piece/Pieces per Month Bearing Bush|
|Model Number||JFB Solid Lubricant Inlaid Graphite Bearing||Type||Sleeve|
|Services||OEM Customized Services||Free Samples||Available|
bronze bearing flange bushing,
oilite bronze flanged bushings

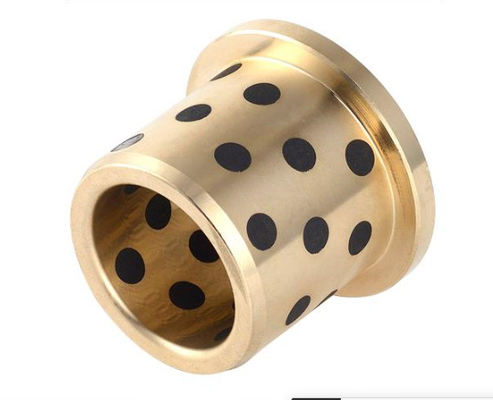

JFB Solid Lubricant Inlaid Bearing
JFB material is made of strong cast bronze based metal with special solid lubricants embedded.The base metal withstands high load and the solid lubricants provide for self-lubrication The bearing shows excellent performance with out pre-lubrication.The bearing shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed. This material provides a maintenance-free bearing solution,particularly for high load,intermittent of oscillating motion. This kind of bearing can be applied under dry,high temperature,high pressure,corrosive,water or other chemical environments when no oil can be introduced. Now is widely be used in automotive product line,water engineering,dam gate,plastic industries,successive casting machines,steel rollers in metallurgy
JFB solid inlaid bearing is a high performance solid lubricated product embedded with graphite or MoS2 solid lubricant on a high strength brass matrix.It breaks through the limitation of ordinary bearing depending on oil film lubrication.In the process of use, the friction heat makes the solid lubricant rub with the shaft, forming the excellent condition of oil and powder co-lubrication, which not only protects the shaft from wear, but also makes the solid lubrication characteristics eternal.Its hardness is one time higher than general copper sleeve, wear resistance is also one time higher.At present, it has been widely used in metallurgical continuous casting machine, train support, steel rolling equipment, mining machinery, ships, gas turbines and other occasions of high temperature, high load, low speed and heavy load.
High load capacity, very good wear and abrasion resistance, moderate corrosion resistance, hardened mating material favorable. Special suitable for toggle mechanism bushing in injection molding machines.
* Possible Application
The product is widely used in ctontinuous casting rolling machine, mining machinery, shipping machinery, turbine, injection machinery, auto mould and so on.
|Kids||Shoulder type||metal||cast brass|
|service environment||standard/oil||Mounting shaft fit tolerance||d8/e7/g6/f8|
|lubrication condition||H7||lubrication condition||maintenance-free/
|Max. Dynamic Load P(N/mm²)||29||Max.speed V(m/s)||0.5|
|Max.PV(range)(N/mm²*m/s)||1.1~2.0||Maximum PV value allowed(N/mm²*m/s)||1.65|
Jiashan Gangping Machinery Co., Ltd. is located in the front line at Yangtze River Delta Economic Circle. This company is almost zero-distance to Shanghai and it’s only 90 km away from both Hangzhou and Suzhou. With such a strategic location, the transportation around the company is very convenient.
As a manufacturing base for sliding bearing industry, our factory’s key focuses are the excellent product quality, optimized manufacturing costs and good after-sales service. Our factory has also been committed to the application and promotion of innovated products, new materials and high-tech researches. We are continuously enhancing the level and image of the enterprise. By the fully integration of the group’s advantages, we are able to provide high-quality, low-cost, and good services to meet the needs of foreign customers.
The product portfolio of our factory covers five categories, 20 series and thousands of specifications. The production processes are well controlled and precise quantified for every details. The production is also strictly implemented under the ISO9001 quality assurance system.
1.Can you give me discount?
Yes,of course.We will quote you lowest price at the beginning.
2.Will you send me free samples?
Yes.We can make some samples to you, please contact us for details.
3.How to get an accurate quotation?
A: If you are interested in our products, please provide us with below information:
♦ Drawings, photos or samples of products.
♦ Detailed sizes of products.
♦ Material of products.
♦ Surface treatment of products.
♦ Ordinary purchasing quantity.
4. What about the delivery time?
Normally the delivery time is about 20 Days, according to the quantity.
