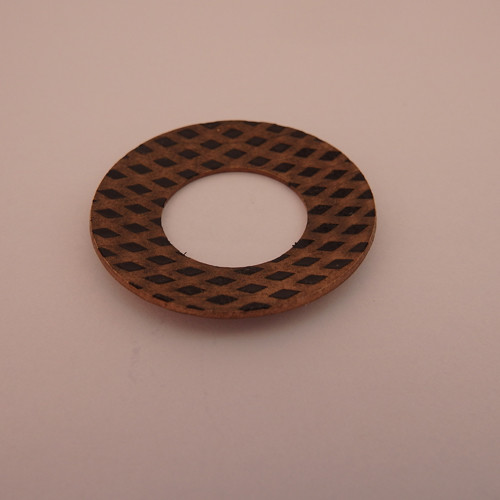

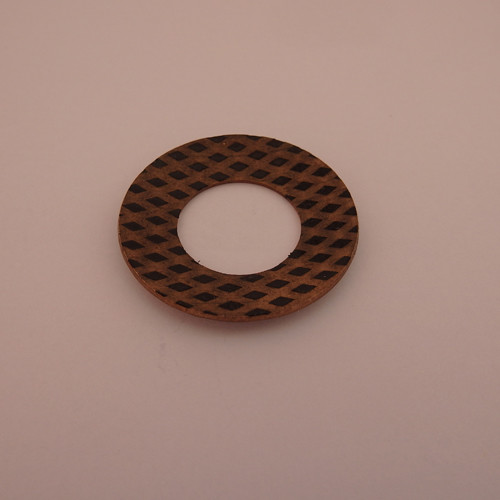

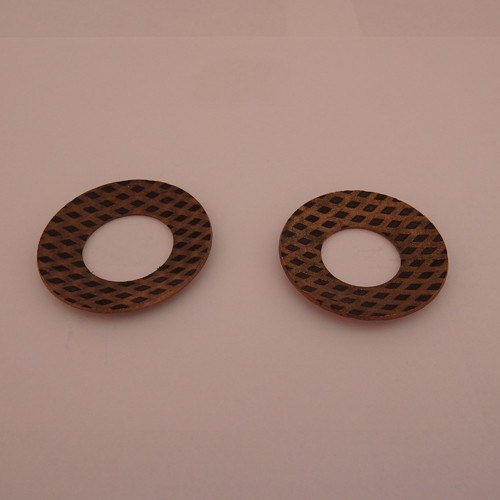

Metal Straightening Machinery CuSn6.5P0. 1 Wrapped Bronze Bearings

FB-092 Wrapped bronze bushing with through holes

The inner surface is made of high-density bronze rolled or spherical oil pocket specially synthesized to reduce wear and prolong service time and to achieve good anti-corrosion function .

The FB092 bronze bearing is made of bronze material and processed with uniform and orderly oil injection holes. The thin-walled bearing made by rolling is filled with lubricating grease after assembly and then equipped with a sealed seal. The bearing has a large oil storage capacity, and the installation has already installed conveyors, elevators, winches, leveling machines and other medium-load and low-speed occasions.

1. Save a lot of copper materials, save the working hours of turning copper sleeve

2. Compared with turning bearing, it has light weight and low cost

3. It can process various kinds of holes and pits on the friction surface to store certain grease, which can prolong the refueling time 5 times as long as that of copper sleeve

4. Extremely high bearing capacity, especially suitable for rough friction surface

Products available : straight sleeve thrust gasket flanging bush bearing bush sliding plate steel sleeve assembly

Material:CuSn8P0.3 / CuSn6.5P0. 1

Hardness:HB90~120

Temperature limit:-100℃~200℃

Load capacity:60N/mm2

Speed limit:2.5m/s

Jiashan Gangping Machinery Co., Ltd. is located in the front line at Yangtze River Delta Economic Circle. This company is almost zero-distance to Shanghai and it’s only 90 km away from both Hangzhou and Suzhou. With such a strategic location, the transportation around the company is very convenient.

As a manufacturing base for sliding bearing industry, our factory’s key focuses are the excellent product quality, optimized manufacturing costs and good after-sales service. Our factory has also been committed to the application and promotion of innovated products, new materials and high-tech researches. We are continuously enhancing the level and image of the enterprise. By the fully integration of the group’s advantages, we are able to provide high-quality, low-cost, and good services to meet the needs of foreign customers.

The product portfolio of our factory covers five categories, 20 series and thousands of specifications. The production processes are well controlled and precise quantified for every details. The production is also strictly implemented under the ISO9001 quality assurance system.

About Us

FAQ

1.Can you give me discount?

Yes,of course.We will quote you lowest price at the beginning.

2.Will you send me free samples?

Yes.We can make some samples to you, please contact us for details.

3.How to get an accurate quotation?

A: If you are interested in our products, please provide us with below information:

♦ Drawings, photos or samples of products.

♦ Detailed sizes of products.

♦ Material of products.

♦ Surface treatment of products.

♦ Ordinary purchasing quantity.

4. What about the delivery time?

Normally the delivery time is about 20 Days, according to the quantity.
