Oilless Graphite Plugged Bronze Bearings With High Corrosion Resistant

  • Oilless Graphite Plugged Bronze Bearings With High Corrosion Resistant
Place of Origin China
Brand Name CCVK
Certification ISO9001
Model Number JDB-1
Price negotiable
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Supply Ability 1000000 Piece/Pieces per Month Bearing Bush
Product Details
Model Number Standard Oilless Bushing Size Customized
Product Material Bronze Speed Limit 2.5m/s
Product Name Oil Free Bushings Surface Finishing Polished
High Light

graphite impregnated bronze bushings

,

bronze plain bearing
Leave a Message
Product Description

oilless self lubricating gunmetal sliding bearing with graphite insert



JDB-1 solid lubricant embedded bearing is made of casting bronze with graphite embedded evenly in it. It has superior performance than normal bearing whose lubrication depends on oil film. Under condition of heavy duty, high temperature, slow speed, anti-corrosion or Where oil is hard to be introduced, Its performance doubles both in hardness and anti-friction It can be widely applied in continuous casting machines, mining machine, ships, air turbine, Hydraulic turbines and plastic injection molding machines.



Base material:CuZn25A16Fe3Mn3

Dynanic load:100N/mm2

Base hardness:HB210~270

Friction Coef.:<0.16

Temperature limit:300℃

Speed limit:0.4m/s 5m/s


Performance index Data
Bass Hardness HB210-270 PV limit (Dry)1.65N/mm2·m/s
(Oil)3.25N/mm2·m/s
Friction coef(μ) ＜0.16 Dynamic load limit 100N/mm2
Temperature limit -40℃~+300℃ Speed limit (Dry)0.5m/s
(Oil)2m/s



JDB650 series 650 650S1 650S2 650S3 650S5
Cu 65 85 80 88 80
Sn   5   12 10
Pb   5     10
Zn 25 5
Ni
AI 6   10
Fe     5
Mn 4
Density 8 8.8 7.6 8.8 8.9
Hardness HB ＞210 ＞70 ＞150 ＞80 ＞250
Pullable force N/mm2 ＞750 ＞200 ＞500 ＞260 ＞800
Elongation % ＞12 ＞15 ＞10 ＞8 ＞8
expansion Coefficient 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.9×10-5/℃
Friction coef(μ) 0.03~0.20 0.03~0.18 0.03~0.20 0.03~0.18 0.03~0.20
Thermal conductivity 60W(m·k)-1 60W(m·k)-1 60W(m·k)-1 60W(m·k)-1 60W(m·k)-1
Working temperature -40℃~+300℃ -40℃~+400℃ -40℃~+400℃ -40℃~+400℃ -40℃~+300℃
Max Load Capacity N/mm2 100 60 50 70 150
Max Sliding Speed m/min 15 10 20 10 10
Max PV Value Limit N/mm2·m/min 200 60 60 80 200

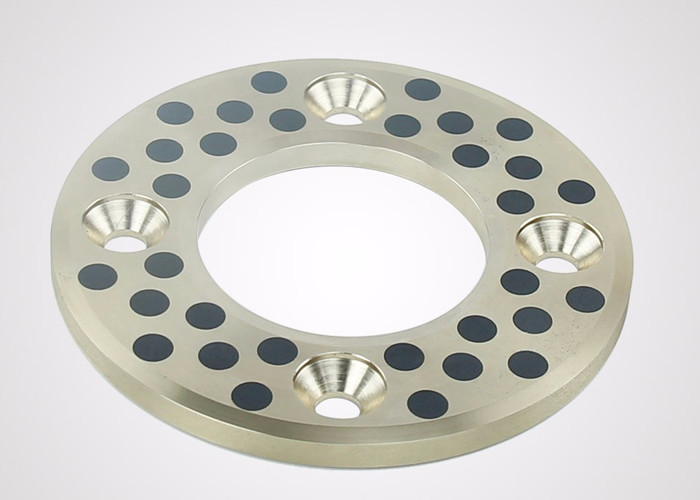

Oilless Graphite Plugged Bronze Bearings With High Corrosion Resistant 0

Oilless Graphite Plugged Bronze Bearings With High Corrosion Resistant 1



About Us




Jiashan Gangping Machinery Co., Ltd. is located in the front line at Yangtze River Delta Economic Circle. This company is almost zero-distance to Shanghai and it’s only 90 km away from both Hangzhou and Suzhou. With such a strategic location, the transportation around the company is very convenient.

As a manufacturing base for sliding bearing industry, our factory’s key focuses are the excellent product quality, optimized manufacturing costs and good after-sales service. Our factory has also been committed to the application and promotion of innovated products, new materials and high-tech researches. We are continuously enhancing the level and image of the enterprise. By the fully integration of the group’s advantages, we are able to provide high-quality, low-cost, and good services to meet the needs of foreign customers.

The product portfolio of our factory covers five categories, 20 series and thousands of specifications. The production processes are well controlled and precise quantified for every details. The production is also strictly implemented under the ISO9001 quality assurance system.





FAQ



1.Can you give me discount?

Yes,of course.We will quote you lowest price at the beginning.



2.Will you send me free samples?

Yes.We can make some samples to you, please contact us for details.



3.How to get an accurate quotation?

A: If you are interested in our products, please provide us with below information:



♦ Drawings, photos or samples of products.



♦ Detailed sizes of products.



♦ Material of products.



♦ Surface treatment of products.



♦ Ordinary purchasing quantity.





4. What about the delivery time?

Normally the delivery time is about 20 Days, according to the quantity.
